Google AutoValue & Immutability

May 22, 2016 0 Comments Android

AutoValue is a Java library created by Google and released as version 1.0 in January 2015. His goal is to generate immutable value classes, backward compatible with Java 1.6, and avoid to write all the boiler plate code. But what is a value object class?

Java Value Objects

From the Oracle documentation on Java 8, we can find that a value type class:

  • is final and immutable,
  • implements equals, hashcode and toString that based on instance state and not identity,
  • do not use identity-sensitive equality, or hashcode and are considered equal based solely on equals() method,
  • do not have accessible constructors but are instantiated through factory methods which make no commitment to instances reference.

What's identity

Object identity is the instance id or reference. When you write someObject = originObject, you are sharing the instance of originObject in someObject. If you modify someObject, it's actually originObject that you are modifying (does not apply for primitives).

In Java, we can verify that two objects are from the same instance by using the operator ==. On the other side, the equals() is commonly used for a comparison of the object's values (as shown in the example below).

public void testStringIdentity() {
    String object1 = new String("banana");
    String object2 = new String("banana");
    String object3 = object2;

    // Comparison on identity, object 2 has not the same reference id than object 1
    assertThat(object1 == object2).isFalse();

    // Comparison on identity, object3 has the same reference id than object 2
    assertThat(object2 == object3).isTrue();

    // Comparison on value, this assertion is valid too

Why using immutability

"Classes should be immutable unless there's a very good reason to make them mutable....If a class cannot be made immutable, limit its mutability as much as possible." - Joshua Bloch in Effective Java

So let's do it... Well, not so fast, why we should do this?

Immutable objects simplify a lot our programming headaches:

  • they are simple to construct, test, and use
  • they are thread safe
  • they don't need a copy constructor
  • they don't need an implementation of clone
  • they allow hashCode to use lazy initialization, and cache its return value as it will never change
  • make good Map keys and Set elements (these objects must not change state while in the collection)

As Martin Fowler show us with his little example, thread safety is a serious problem that can be avoided simply by using immutable objects.

task1.setStartDate(new Date("1 Jan 98");
//then somewhere in the task class
void delay(int delayDays) {
_startDate.setDate(_startDate.getDate() + delayDays);

// then somewhere
// now you find task1's start date has changed

Writing an immutable class is (not) fun

Ryan Harter, one of the contributors of the AutoValue library have written good posts on introducing AutoValue and creating extensions for this library that you should read if you want to learn more about it.

But let's see what an immutable class needs for existing.

Base class

Let's start by creating a User class with his name, email, and location: 5 Lines of code.

public class User {
    public String name;
    public String email;
    public Location location;


We want instance's values to be immutable. We use an access modifier private final to avoid the objects to be re-assigned. Same for the class that needs not to be subclass-able. Finally, we have to add a constructor.

public final class User {
    private final String name;
    private final String email;
    private final Location location;

    public User(String name, String email, Location location) { = name; = email;
        this.location = location;


To access the instance's values we have to create getters.

private String getName() {
    return name;

private String getEmail() {
    return email;

private Location getLocation() {
    return location;

On a side note, if you return a Mutable Object in the getter, Java will return his reference. Doing so, you will be able to modify it breaking the advantages of the Immutability. To avoid that you will have to return a clone of the object. You should also take care of the memory cost of doing so. Not much more choices there, choose carefully.

private Location getLocation() {
    return location.clone();

Hashcode() & Equals()

To handle the equals by values and not by reference we have to generate the equals() and hashcode(). As with the getters, IntelliJ is a good software and lets you generate this code by using Ctrl+Enter (mac). Unfortunately, you will have to never forget to delete and redo it each time you add a new variable. Not really mistake proof. Ow, and that's 22 more lines. 41 lines now...

public boolean equals(Object o) {
    if (this == o) return true;
    if (o == null || getClass() != o.getClass()) return false;

    User user = (User) o;

    if (name != null ? !name.equals( : != null) return false;
    if (email != null ? !email.equals( : != null) return false;
    if (location != null ? !location.equals(user.location) : user.location != null)
        return false;

    return true;

public int hashCode() {
    int result = name != null ? name.hashCode() : 0;
    result = 31 * result + (email != null ? email.hashCode() : 0);
    result = 31 * result + (location != null ? location.hashCode() : 0);
    return result;


Welcome in Android world, if you want to share your object through an Intent by example you will have to implement the parcelable class. BOOM 29 more lines -> 70 lines written / generated.

public int describeContents() {
    return 0;

public void writeToParcel(Parcel dest, int flags) {
    dest.writeParcelable(this.location, flags);

protected User(Parcel in) { = in.readString(); = in.readString();
    this.location = in.readParcelable(Location.class.getClassLoader());

public static final Parcelable.Creator<User> CREATOR = new Parcelable.Creator<User>() {
    public User createFromParcel(Parcel source) {
        return new User(source);

    public User[] newArray(int size) {
        return new User[size];


For aesthetics, we can add a bit more code. toString() methods exists to display a human readable object for your logs or debugging session by example. What's the score now? 78 lines. Not that bad for only one object and three fields.

public String toString() {
    return "User{" +
            "name='" + name + '\'' +
            ", email='" + email + '\'' +
            ", location=" + location +

Half way conclusion

We had to write and generate 78 lines to create a Three Fields Value Object. We will have to take care to modify 30% of the code if we add or delete a new variable. It's a mistake that can cause problems and are difficult to debug because we tend to slip over those methods without really reading them.

On a side note, we can create this kind of class easily in kotlin by using a data class. (Parcelable will not be part of the deal though)

data class User(val name: String, val email: String, val location: Location)


As said in the beginning, Google saved our sanity by creating this library with the help of some collaborators. An excellent job has been done on the documentation. It's the best-documented library I have ever used.

Setting It Up

You will need to add the APT processor on your main build.gradle.

Project:Autovalues - build.gradle

dependencies {
    classpath ''
    classpath 'com.neenbedankt.gradle.plugins:android-apt:1.8'

Then add the library to your app/build.gradle. Take care to insert the auto-value-annotations from Jake Wharton to avoid leaking the whole annotation processors into our classpath.

Module:app - build.gradle

apply plugin: ''

dependencies {
  apt ''
  provided ''

Simple Example

So this is what we have to write to have the same class as above (without the Parcelable). 9 lines... I truly think that's awesome.

public abstract class User {
    public abstract String name();
    public abstract String email();
    public abstract Location location();

    public static User create(String name, String email, Location location) {
        return new AutoValue_User(name, email, location);

As the time of writing this, I'm working on a new project for the Montreal Agency Tractr and I have created dozens of those objects for the API Client and it saved me a lot of time and headaches using immutability.

Create object live template

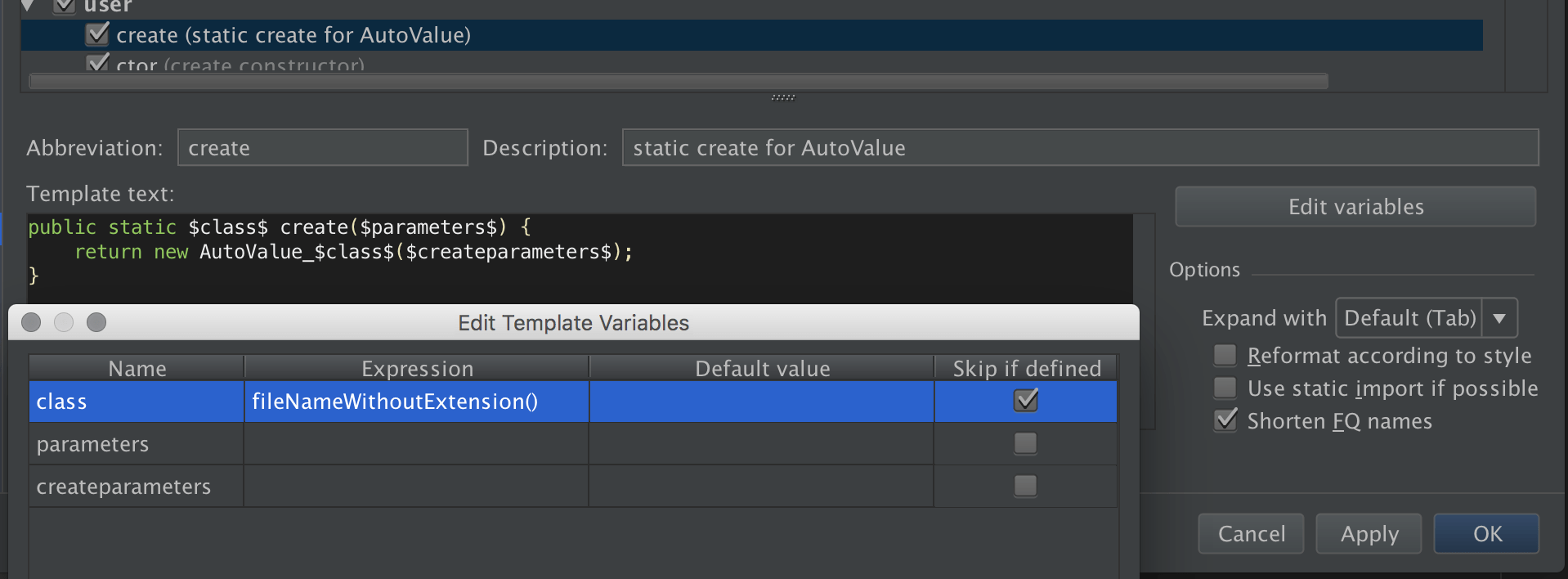

When creating those object I often had trouble while writing the creator because the AutoValue_class was not yet generated. To avoid typos, I created this little live template to help. If you find a way to add the abstract methods directly in the constructor, let me know.

public static $class$ create($parameters$) {
    return new AutoValue_$class$($createparameters$);

Live template to create object


To have the same object as before, we need to add the parcelable code. Fortunately for us, an extension have been created that does exactly that. Add it to your Gradle build file.

dependencies {
  apt ''

Make the User implement Parcelable and here we go, our class generated will handle it. No more code needed.

public abstract class User implements Parcelable {


AutoValue library comes with nearly 9k methods, so if the 65k methods limit of Android is not a problem for you, I recommend it highly. It's very easy to use, increase your code readability, writing, and maintenance while helping you keeping your multithreaded code easy to fix thanks to the immutability. Recently I had to go back to some code I wrote 6 months ago where I wrote a 150 lines class with a builder. I changed it using AutoValue and was able to squish everything in less than 40. My scrolling finger thanked me ;)

Immutability Oracle JavaSE
Value Types OpenJDK
Value objects Should be immutable
Immutability Java Practices
Intro to Autovalue by Ryan Harter, writer of many extentions

Vincent Dubedout
Android developer that settled down in Montreal three years ago. Passionate about Technology, Code, Architecture, Mobile Platforms. Avid cyclist and polo player, enjoying the outdoors.
